GREATER. THAN. EVER.
- All-New Dynamic Design
- TNGA Platform for Outstanding Agility and Comfort
- New 169 Horsepower, 2.0-litre Dynamic Force Engine
- Available Direct-Shift CVT or Six-Speed Manual Transmission
- Standard Toyota Safety Sense 2.0
- Standard Entune 3.0 Audio with Apple CarPlay Compatibility
- New-Generation Hybrid Synergy Drive
- First-Ever Corolla Hybrid in North America
- Anticipated combined hybrid fuel consumption of less than 5.0L / 100 km
With more than 45 million Toyota Corollas sold globally since its introduction in 1966, it would be difficult to find a driver who did not recognize the name. Everyone, it seems, has a Corolla story. Many, though are going to be doing double takes when they see the re-imagined and reconfigured 2020 Toyota Corolla Sedan. And that's exactly the point.
The 12th-generation Toyota Corolla made its arrival in two chapters: the all-new Corolla Hatchback arrived earlier this year, and now comes the best-selling Corolla body style, the sedan. Both are based on the Toyota New Global Architecture (TNGA), which is far more than a new body structure, also bringing together new approaches to engineering, design, assembly, and materials.
TNGA TRANSFORMS.
- TNGA transforms both Corolla styles into drivers' delights while also bolstering the model's renowned value and reliability. Both draw from the same DNA and share powertrains.
- The 2020 Corolla Sedan dramatically elevates this model's focus on comfort and refinement while also infusing it with the Corolla Hatchback's feisty personality.
- The TNGA platform means an available engine that produces more power than its predecessor yet delivers better fuel efficiency.
- TNGA imbues the Corolla sedan with greater agility, yet also with its smoothest, quietest ride.
- TNGA also means an elevated feeling of quality in every surface, switch and control the driver sees and touches. And, critically, TNGA delivers on Toyota's commitment to driver and passenger safety with the Toyota Safety Sense 2.0 suite of active safety systems - standard on every Corolla sedan model.
DESIGN TRANSFORMATION
- From every angle, the new Toyota Corolla looks lower and leaner, tauter and tighter. Powerful fender flares and generously curved fender top surfaces accent its sculpted, athletic core.
- The 2020 Corolla Sedan rides on a 2,700 mm wheelbase, like its predecessor, yet any commonality ends there.
- Corolla's dynamic performance and stance benefit greatly from wider front (+11 mm.) and rear (+22 mm) track dimensions.
- The front overhang was shortened by 33 mm, and the rear overhang extended by more than 15 mm. Height was reduced 20 mm, and the hood lowered 35 mm. for better forward visibility, made possible by mounting the engine lower. Those changes, plus many others, reduce the centre of gravity by 20 mm. - a significant amount, as any racecar engineer can attest.
- The bold front fascia details vary by model grade, with the SE and XSE putting on the sportiest face, including a body-color chin spoiler and aero stabilizing fins to emphasize the wide stance.
- The slim, J-shaped Bi-Beam LED headlamps wrap deeply into the front fenders and give the Corolla sedan a steely stare and a distinct nighttime signature.
- The sporty SE and XSE grades use triple J-shaped clearance lamps with LED light guides along with LED turn signals, creating a unique design signature.
- The rear leaves a distinct lighting impression as well, with narrow combination lamps that wrap deeply into the fenders.
- All 2020 Corolla sedan models use LEDs, the type and style varying by model grade. The sporty grades feature smoked outer light lenses.
What better way to showcase the Corolla's dramatic new sheetmetal than with a dramatic new color? The new hue is a highly iridescent Celestite Grey Metallic.
The rest of the palette includes:
- Blizzard Pearl
- Super White
- Classic Silver Metallic
- Black Sand Pearl
- Barcelona Red
- Blue Crush Metallic
- Dark Blue Metallic

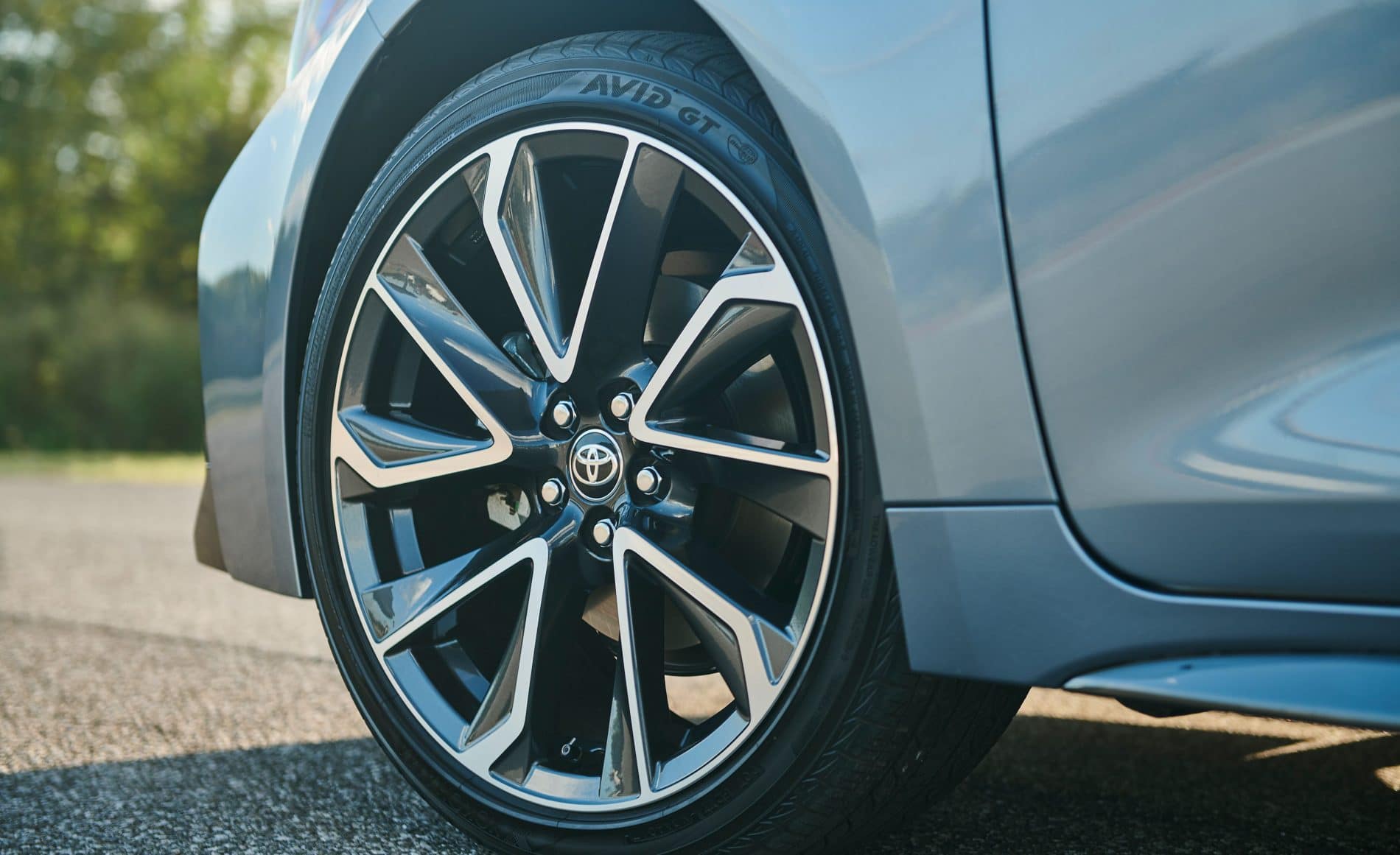

BIG WHEELS KEEP ON TURNING
The Toyota Corolla sedan transformation continues where the rubber meets the road.
- 18-inch wheels available on the SE and XSE grades.
- The LE grade rides on 16-inch steel wheels with covers.
- The XLE grade gets new 16-inch alloy wheels with three-dimensional twisted spokes.

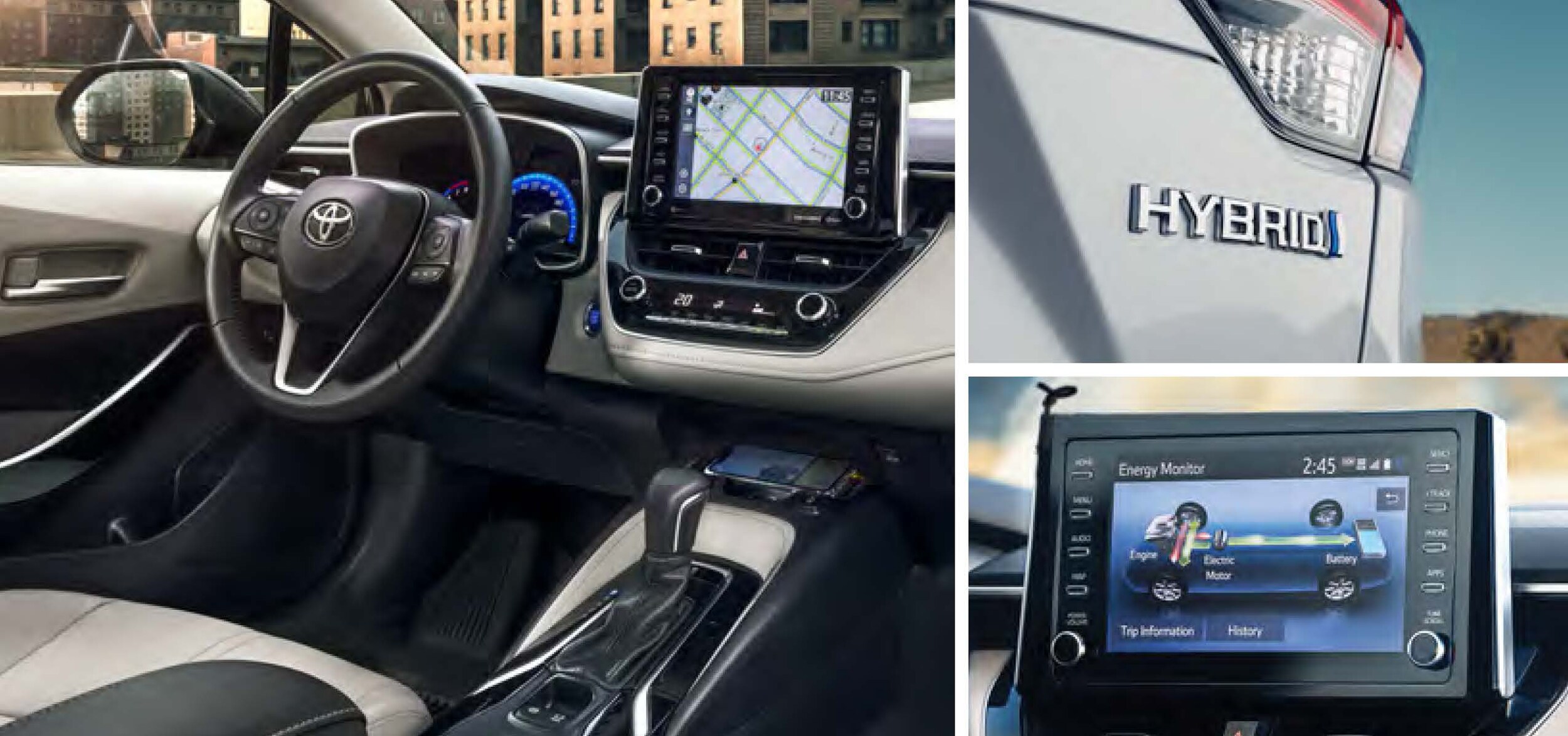

CABIN FEVER
Simple. Warm. Inviting. Sensuous. These descriptors, seemingly from the luxury car realm, inspired designers' efforts when visualizing Corolla sedan's cabin. The result is called "Sensuous Minimalism." It's equal parts sporty and elegant, and, as always, Corolla-comfortable and durable.
- A neat instrument panel lends an open, harmonious feeling thanks to its slimmer upper surface, with character lines that interlock with the door trim to convey an airy atmosphere.
- A high-resolution 8-inch multimedia touchscreen for the standard Entune 3.0 multimedia system on all grades except the L grade, which gets a 7-inch multimedia touchscreen.
- Climate controls are fashioned in a bright, highly visible digitized configuration.
- An armrest that's nearly 20 mm longer than in the previous model, for greater comfort.
- The cockpit provides an engaging interior space that surrounds the driver while offering a spacious environment for all passengers.
- Compared to the previous Corolla, the instrument panel, cowl, hood and beltline height are all lowered to increase visibility and create the interior's open feel.
- High-gloss materials are paired with matte elements - silver accents with piano black and available contrasting stitching - to accentuate a premium look and feel. Minimized gaps between buttons and switches, along with the elimination of unnecessary lettering on switchgear, adds to the high-class ambience.
- Available ambient lighting illuminates the front door trim, console tray and front cupholder. The tray can hold small items such as a smartphone or wallet, or, when so equipped, houses the optional Qi wireless device charging pad. Terraced cup holders adapt to various-sized beverage containers.
DIGITAL TOOLS
- Standard 4.2-inch thin film transistor (TFT) Multi-Information Display (MID), with an available 7-inch MID located between the high-grade tachometer and speedometer. With the larger display, the driver can switch between analog and digital speedometer styles.
- Featuring rich graphics, the easy-to-read MID can be custom configured by the driver and offers intuitive operation to access information for the audio and multimedia systems, navigation system, vehicle information including fuel efficiency and tire pressure, the Dynamic Radar Cruise Control (DRCC), and other important parameters and system settings.
FRONT ROW SEATING
From behind the wheel, the 2020 Corolla sedan feels quite different than its predecessor. Positioning the driver's hip point 25 mm lower and 40 mm further rearward yields an optimized driving position. The result not only improves comfort, but also helps to lower the vehicle's centre of gravity and improves front/rear weight distribution. These changes, along with the reconfigured lower beltline, slimmer instrument panel, slimmer A-pillars, and repositioned side view mirrors, result in more expansive outward visibility.
- The front seats of the XSE and SE grades debut a new design featuring a unique shape with a headrest that nestles into the shoulder area, while the XLE and LE grades offer a seatback with a new U-shaped pattern.
- This major departure from a conventional square seatback design creates a sense of youthful, sporty appeal while improving comfort. The SE and XSE grades' front seats offer thin, yet broad shoulder supports, evocative of a competition bucket seat, which overlap solid and thick side bolsters to achieve enhanced holding performance.
Seating materials include standard cloth or, in higher grades, SofTex™. New interior color schemes include several striking two-tone accents. Choices include Blue/Black (black as the main color with blue highlights), Moonstone (light gray as the main color with dark gray highlights) and new Macadamia (a warm, inviting cream color).
LOTS OF ROOM, NOT NOISE
- The rear seat area retains excellent headroom, despite the lower roofline. Legroom is also plentiful, fulfilling a basic mission of sedans.
- Powertrain and road noise have been culled thanks to revised drivetrain efficiencies, plus the widespread implementation of sound-absorbing materials, including Thinsulate®, sealants, foams, and silencers.
- The TNGA structure utilizes additional seals in its body panel gaps to insulate noise penetration and enhance air-sealing performance. The floor silencer pad is now one large piece, instead of many smaller elements. The inner and outer dash silencers are thicker. Combine all that with Corolla's quieter powertrain, and it's one tranquil ride.
COOLER WHERE IT COUNTS
Corolla sedan's fully redesigned air conditioning system is more compact, more efficient and more effective.
- The smarter climate control is the innovative twin-layer recirculation/fresh air induction unit: In cold climates, it will automatically send dehumidified fresh air to the upper cabin to reduce glass fogging while promoting recirculation of warm cabin air in lower areas.
- System controls, located below the multimedia portal, are fashioned in a bright, highly-visible digitized configuration. The climate control interface features a piano black background with satin and silver accents for a premium, high-quality look and feel.
MULTI-CHOICE MULTIMEDIA
The 2020 Corolla sedan comes ready to pair with the driver's digital life.
- The standard Entune 3.0 Audio includes an available 8-in. touchscreen display; six speakers; Apple CarPlay compatibility; Entune 3.0 App Suite Connect; Safety Connect; Scout GPS Link Compatible; Siri Eyes Free; auxiliary audio jack and USB 2.1 port with iPod connectivity and control; AM/FM; MP3/WMA playback capability; hands-free phone capability; voice recognition and music streaming via Bluetooth; customizable home screen; and weather/traffic info via Entune 3.0 App Suite.
- The LE and SE grades get Entune 3.0 Audio with an 8-inch touch screen and 2 USB ports.
- Entune Premium, standard on XSE, XLE and optional on SE CVT, adds an HD Radio and Weather/Traffic info; SiriusXM with Cache Radio; Entune 3.0 Connected Services; Service Connect, and Remote Connect.
- Topping the range is Entune 3.0 Audio Premium that's optional on XSE and XLE. The package includes Dynamic Points of Interest Search; and Destination Assist Connect.
Featured apps for Entune Premium systems include:
Safety Connect®
In the event of an accident or other emergency, assistance can be dispatched directly to the vehicle's GPS location. Other connected services available on the Corolla include airbag-linked Automatic Emergency Notification, Manual Emergency Notification (SOS button) and Stolen Vehicle Locator.
Destination Assist Connect
Directions and destinations delivered by a real person with 24-hour, en-route navigation assistance.
Navigation
Provides the most up-to-date map data, routes and POI on its embedded system. (Available with Entune 3.0 Premium Audio.)
DYNAMIC FORCE IS WITH YOU
The 2020 Corolla sedan L, LE, and XLE grades will use the 1.8-litre engine (2ZR-FAE) found in the previous generation, yet with more horsepower and better fuel efficiency. The XSE and SE grades are powered by a completely-new 2.0-litre Dynamic-Force direct-injection inline four-cylinder engine (M20A-FKS).
- Delivers more performance and using less fuel.
- Engine is physically smaller and lighter, helping to lower the car's centre of gravity and improve its overall balance.
Here are some of the tech bits on Corolla sedan's new available engine:
- The new Dynamic Force engine gets it high power and efficiency from a combination of high compression ratio (13:1), Toyota D4-S fuel injection combining direct and secondary port injectors, high-speed combustion, VVT-iE intelligent variable valve-timing on the intake side and VVT-i on the exhaust. VVT-iE uses an electric motor instead of oil pressure to control the variable valve timing.
- A two-discharge port oil pump and a variable cooling system with electric water pump help maximize engine performance and efficiency. The more efficient cooling system also ensures quicker cabin heating on cold days and quicker cool-down when the air conditioner is used.
- All of those technologies, along with ultra-low internal friction, yield a maximum thermal efficiency of 40 percent, among the highest in the world for a passenger vehicle engine. You can't feel thermal efficiency, but you can feel the effects of 169 peak horsepower at 6,600 rpm and 151 lb-ft peak torque at 4,800 rpm.
Shifting Smarter
Sedan buyer trends are shifting, and the 2020 Corolla sedan is right there with them.
- The new Direct-Shift CVT (continuously variable transmission) combines the smooth, fuel-efficient performance of a CVT with a more direct driving feel of a traditional geared automatic.
- The key to its distinct performance feel is a physical first gear used for start-off acceleration, before handing off to the CVT's pulley system. Because the launch gear is handling the higher input load at launch, the size of the CVT's belt and pulley components could be reduced, yielding shifting speeds that are 20 percent faster than in a conventional CVT.
- High-speed, high-response gear-shifting technology, using a multiplate wet clutch, switches power from the gearset to the CVT's belt and pulleys. The Direct Shift CVT has simulated 10-speed Sequential Shiftmatic steps along with Sport Mode. Synchronization of the increasing engine revs and vehicle speed gives a linear acceleration feel.
- For those who want to shift for themselves, the 2020 Corolla sedan offers an intriguing choice with the all-new 6-speed iMT (intelligent manual transmission). Like some premium sports cars, it features downshift rev-matching control, automatically detecting when the driver is shifting and quickly rev-matching to make any driver a stick-shift pro.
- New control logic improves acceleration feel when starting off, and improved shift feel makes this a stick shift you want to use. Increased use of micro polishing on gear teeth reduces cabin noise. Standard Hill-start Assist Control (also on the CVT models), helps prevent the dreaded roll-back when starting off on an incline.
Platform: The Strong, Silent Type
A super-rigid structure, lower centre of gravity and highly refined suspension tuning endow the Corolla sedan with exemplary handling agility and ride comfort, along with a distinctive driving personality.
- Increased use of ultra-high-tensile steel as well as the application of new structural adhesive technology for enhanced body rigidity and occupant safety. Specifically, torsional rigidity is improved by 60 percent compared to its predecessor.
- The new body uses a totally new multi-load path front structure to absorb frontal collision impact forces and disperses collision energy to help prevent deformation of the occupant compartment.
- High-tensile steel in the rocker panel reinforcements and the upper kick panel; wider underbody side members; strengthened rear bumper reinforcements, and thicker dashboard panel, floor panels, and underbody tunnel all improve energy dispersion in the event of a collision.
- A squared figure-of-eight reinforced ring-shaped structure around the door openings, along with larger-diameter impact beams for the front and rear doors, are designed to help in the event of a side collision.
Sport Sedan Handling, Sedan Comfort
The 2020 Corolla sedan looks the part of a fun-to-drive sport sedan, and the chassis delivers on the promise.
- The multi-link independent rear suspension is a major advance over the torsion beam setup used in the previous model, more adept at comfortably absorbing bumps while also ratcheting up agility.
- The MacPherson strut front suspension, totally revised for this platform, uses sophisticated techniques, including a strut bearing mounted coaxially with the kingpin axis. This feature allows smoother upward suspension travel, especially while traversing bumps, resulting in more comfortable steering feel.
- Overall, front and rear suspension friction has been reduced by 40 percent. Newly developed shock absorbers have been tuned to provide optimal damping force for dynamic handling and stability with exemplary ride comfort.
Foundation for Safety
The 2020 Corolla sedan features eight standard airbags and Toyota's Star Safety System, which includes Enhanced Vehicle Stability Control, Traction Control, Electronic Brake-force Distribution, Brake Assist, Anti-lock Braking System, and Smart Stop Technology. All Corolla models come equipped with a standard backup camera.
Toyota Safety Sense 2.0
Significantly, all 2020 Toyota Corolla models are equipped as standard with Toyota Safety Sense™ 2.0, an advanced suite of integrated active and pre-collision safety features.
PCS (Pre-Collision System): Uses both a millimeter wave radar sensor and a forward-facing camera sensor for highly accurate detection of objects such as a vehicle, a pedestrian or a cyclist in front of the vehicle. If the PCS determines there is a high probability of a collision, or if it deems a collision is unavoidable, the system is designed to automatically activate the brakes to help avoid the collision entirely or mitigate the impact force.
DRCC (Dynamic Radar Cruise Control): Designed for highway use, has a vehicle-to-vehicle distance control mode that utilizes a millimeter wave radar sensor and camera sensor to maintain a pre-set follow distance from the preceding vehicle. The Full-speed DRCC version, standard on CVT models, is also capable of low-speed following, including stop-and-go traffic. The Corolla is designed to stop when the vehicle ahead comes to a stop, maintaining an appropriate distance to it. The driver enjoys more relaxed driving in situations that can be annoying and fatiguing, while also gaining a measure of safety.
LDA (Lane Departure Alert) with Steer Assist: Provides the driver with audible and visual warnings (vehicle positioning warning image shown in the Multi-Information Display) and, if necessary, is designed to provide steering assistance if it determines the possibility of deviation from the driving lane. It is also designed to detects vehicle sway (excess weaving within the driving lane) that might indicate driver distraction, inattention or drowsiness.
LTA (Lane Tracing Assist): LTA, standard on CVT models, is enabled when LDA and DRCC are both on and active. LTA employs a lane centering function that is designed to make constant steering inputs to help the driver keep the vehicle in the centre of its lane. LTA is designed for uses on relatively straight highways to preemptively avoid unwanted lane departures and reduce driver fatigue.
AHB (Automatic High Beam): When enabled, the AHB system uses an in-vehicle camera to help detect the headlights of oncoming vehicles and taillights of preceding vehicles, then automatically switches between high and low beams as appropriate.
Blind Spot Monitor is a standard or optional feature, depending on model grade. When an approaching vehicle is detected, the system is designed to alert the driver using indicators on the outside mirrors.
Brake Hold, when engaged, is a convenient technology that helps reduce driver workload while waiting at a traffic light or while driving in traffic. When the driver depresses the accelerator pedal, Brake Hold releases.
______________________________________________
2020 COROLLA HYBRID
2020 Toyota Corolla Hybrid LE in Blue
With its bumper-to-bumper, wheels-to-roof transformation, the 2020 Toyota Corolla was already big news in sedans for 2019. And now comes the ultimate "But wait, there's more!" bonus: a new hybrid model that will have an anticipated combined fuel consumption of less than 5.0L / 100 km. That makes the 2020 Corolla Hybrid the most fuel-efficient model to ever wear the model name that debuted more than a half-century ago.
The design isn't the only thing electrifying about the Corolla Hybrid. This high-efficiency model adapts the latest Toyota Hybrid Synergy Drive from the new-generation Prius, already proven as a fuel economy winner. Only Toyota offers such a distinct choice of hybrids in this vehicle segment, thus catering to customers who have different tastes in design but the same desire for maximum fuel efficiency.
The 2020 Corolla Hybrid, like its gas-powered siblings, delivers a highly-satisfying driving experience, along with the brand's latest advances in comfort and multimedia technology. As on the 2020 Corolla gas models, the Toyota Safety Sense 2.0 suite of active safety systems comes standard.
The 2020 Corolla Hybrid is yet more evidence of Toyota's indisputable global hybrid leadership, which began more than 20 years ago.
FIT FOR A HYBRID
The hybrid powertrain and battery were a natural fit for the new Corolla because of the Toyota New Global Architecture (TNGA) platform. There's no compromise in cabin roominess, for example, when choosing the Corolla Hybrid versus a gas model.
The new hybrid system combines a 1.8-litre four-cylinder gasoline engine with two motor/generators through an electronically controlled planetary-type continuously variable transmission (CVT) transaxle. Combined system output of 121 horsepower yields decidedly responsive performance.
The nickel-metal hydride (Ni-MH) battery pack employs a newly developed technology called Hyper-Prime Nickel™ to boost battery performance in a smaller and lighter package. The battery's smaller size and flatter shape allow it to be packaged under the rear seat, rather than taking up trunk space, and also allowing a 60/40 split folding rear seatback to expand cargo capacity. The battery location also contributes to the vehicle's lower centre of gravity, a boon to agility.
The engine, working in concert with the electric motor (MG2), assures responsive performance, while exemplary energy efficiency is achieved by using both electric motors (MG1 and MG2) for hybrid battery charging.
DRIVING THE COROLLA HYBRID
The Corolla Hybrid's linear acceleration response may take some by surprise. When pulling away, the battery provides a subtle power boost in order to put less strain on the engine and eliminate the "rubber band" effect experienced with some hybrids.
A preload differential adds to the confident acceleration feel. During low loads and low differential rotation, differential-limited torque is distributed to the left and right wheels, yielding excellent handling stability. At mid-range and high engine loads, the preload differential functions as an open differential.
Corolla Hybrid has EV mode, which allows the vehicle to be operated as a pure electric vehicle for short distances, depending upon certain conditions, such as battery charge level. This mode is useful for operating the vehicle in parking lots or indoor parking garages, for example. The Vehicle Proximity Notification feature alerts pedestrians of the vehicle's presence when running in battery mode.
Along with the expected NORMAL and ECO drive modes, a SPORT drive mode setting allows for an increase in power for stronger acceleration response when desired.
- NORMAL mode: Allows the hybrid system to achieve an ideal combination of fuel economy and vehicle acceleration. The accelerator opening amount changes linearly in response to accelerator pedal operation.
- ECO mode: Improves hybrid system efficiency by limiting power in response to light to moderate accelerator pedal input.
- SPORT mode: Available power is increased, allowing for improved acceleration response.
Another boost to efficiency comes from the Electronically Controlled Brake (ECB) system, which coordinates operation between the regenerative braking force of the electric motors and the hydraulic braking system force to provide optimal stopping power. By proactively using the electric motors to recover as much electrical energy as possible from the regenerative braking system, this extremely efficient cooperative control helps to maximize fuel economy.
An active hydraulic booster on the conventional (non-regenerative) braking system improves pedal feel and feedback for the driver. Critically, should there ever be a malfunction in the ECB system, the conventional hydraulic braking system can stop the vehicle.
Brake Hold, when engaged, is a convenient technology that reduces driver effort while waiting at a traffic light or while driving in heavy traffic. When the driver presses the accelerator, Brake Hold releases instantly.
HOW THE OTHER HALF WORKS
The other half of the Hybrid Synergy Drive team, the gas engine, is no less impressive than the electric side. The 2ZR-FXE 1.8-litre inline four-cylinder engine was designed specifically for a hybrid application. The long-stroke configuration employs the Atkinson cycle, which uses a very high compression ratio (13.0:1) along with a shorter intake stroke and longer expansion stroke than the Otto cycle. The Atkinson cycle extracts more energy from the fuel, and the electric motors compensate for reduced low-end power (versus the Otto cycle).
Friction created by the piston skirts, rotating parts and oil pump is reduced, and an electric water pump eliminates the parasitic losses with a conventional belt-driven pump. Toyota sought efficiency gains in every system. The highly-efficient air conditioning system, for example, uses S-FLOW control, which automatically optimizes airflow throughout the cabin according to the temperature setting, actual cabin and outside temperatures, sunlight intensity, and occupied seats.
Getting the engine up to operating temperature quickly is critical to conserving fuel and reducing emissions at start-up. In the Corolla Hybrid, an exhaust heat recirculation system speeds up engine coolant warm-up. That in turn allows the hybrid system to stop the gas engine earlier and more often in the driving cycle when it's not needed, for example in low-power-demand city driving conditions.
The PTC (Positive Temperature Coefficient) heater quickly provides cabin heat electrically in cold temperatures.
HYBRID EXCLUSIVES
The Corolla Hybrid rolls on 15-inch aluminum alloy wheels with low-rolling resistance tires. As on the Corolla gas models, the new multi-link rear suspension improves both handling agility and ride comfort compared to the previous-generation Corolla Sedan.
The instrument panel uses a high-grade meter with a 7-inch Multi-Information Display (MID). The MID shows the speedometer, as well as a hybrid system indicator/real-time battery charge status indicator. ECO accelerator guidance, also shown in the MID, can provide a guideline for maximizing fuel efficiency by coaching the driver on optimal accelerator pedal operation to match driving conditions. Drivers who like the visual appeal of seeing engine rpm can choose to display a tachometer.
